QuickFold VEHICLE GATES

MODEL 3 TOWER OPERATOR

UL 325 outdoor-rated folding and swing gate tower operator. Fully enclosed in steel case with all controls and motors encased in a single unit to reduce opportunities for vandalism and improve architectural appearance while providing a full lane opening. Small 16” footprint ensures simple placement hidden in the fold of the building or on the fenceline. Tested to over a million cycles.

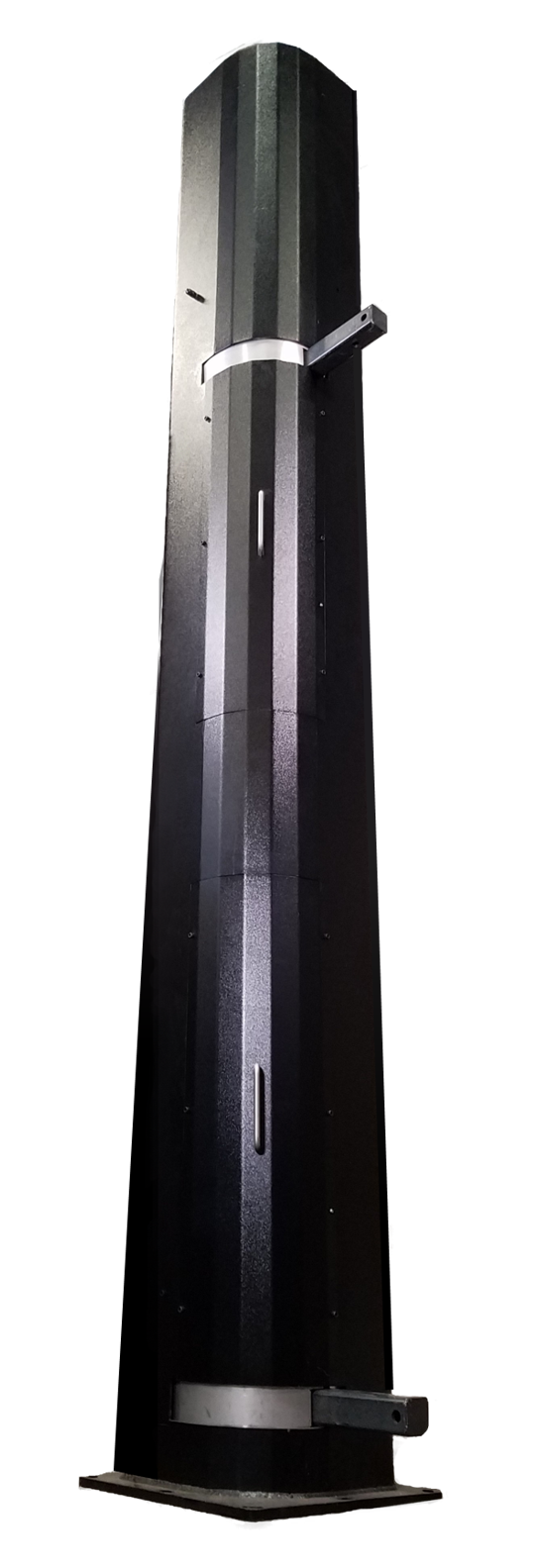

Model 3 Tower Operator for Folding and Swing Gates

Model 3 Tower Operator for Folding and Swing Gates

Features

  • Tall, sleek operator acts as the gatepost

  • Secure: all components (motor, gearbox, control panel, etc.) are inside the tower

  • Small footprint, great for tight spaces

  • Heavy Duty: One million+ cycles

  • Fast open/close times

  • Heavy Duty: 1,200 lbs. capacity

  • Excellent replacement for roll up doors or grilles

  • Markets: Multi Family, Parking Garages, High Security, Justice, Data Centers, Distribution Centers

  • UL 325 Listed

  • Easy installation: two conduit runs into operator and eight slotted boltholes for easy mounting

Specifications

  • Duty Cycle: Continuous

  • Drive: 1/3 HP DC motor

  • Gate Swing: 100°

  • Opening Time: 90° in 13 seconds

  • Max Gate Weight: 1,200 lbs

  • Max Gate Width: 24 feet

  • Max Gate Height: 15 feet

  • Power: 110v, 20 amp

  • Operating Temperature Range: 5° - 122° Fahrenheit

Model 3 Tower Operator for Folding Gates Brochure PDF
Model 3 Tower Operator and custom QuickFold folding gate
